Color coated coils are widely used in various industries, including construction, home appliances, and automotive manufacturing. As a professional color coated coil supplier, I am delighted to share with you the detailed manufacturing process of color coated coils.
1. Raw Material Preparation
The journey of color coated coil manufacturing begins with the selection of high - quality base materials. Usually, cold - rolled steel or galvanized steel is used. Cold - rolled steel provides a smooth surface and good formability, while galvanized steel offers excellent corrosion resistance due to the zinc coating on its surface.
We source our base materials from reliable suppliers. Before the actual production, the base coils are carefully inspected for any surface defects, thickness variations, and mechanical properties. This ensures that the final product meets the strict quality standards. The coils are typically large in size, with different widths and thicknesses depending on the customer's requirements.
2. Surface Pretreatment
Surface pretreatment is a crucial step in the manufacturing of color coated coils. It involves several sub - steps to clean, degrease, and form a conversion coating on the base material.
First, the base coils enter the cleaning section. Here, they are exposed to a series of chemical solutions that remove dirt, oil, and other contaminants from the surface. This is essential because any impurities on the surface can affect the adhesion of the subsequent paint layers.
After cleaning, the coils go through a pickling process. In pickling, the coils are dipped in an acid solution to remove any rust or scale that might have formed on the surface. This step also helps to enhance the surface roughness, which is beneficial for better paint adhesion.
Following pickling, a conversion coating is applied. The most common type of conversion coating is a chromate or non - chromate coating. The conversion coating acts as a barrier between the base metal and the paint, improving corrosion resistance and paint adhesion. It forms a thin, uniform layer on the surface of the base material.
3. Coating Application
Once the surface pretreatment is completed, the coils are ready for the coating application. There are two main types of coating methods used in the production of color coated coils: roll coating and spray coating.
Roll Coating
Roll coating is the most widely used method in the industry. In this process, the paint is applied to the surface of the base material using a series of rollers. There are usually two or more coating passes. The first pass is called the primer coat. The primer provides additional corrosion protection and serves as a bonding layer for the topcoat.
The primer is carefully formulated to have good adhesion to the conversion - coated surface and compatibility with the topcoat. After the primer is applied, it is cured in an oven at a specific temperature and for a set period of time. This curing process helps the primer to harden and form a strong bond with the base material.
The second pass is the topcoat application. The topcoat is responsible for the color and the aesthetic appearance of the color coated coil. It also provides additional protection against UV radiation, weathering, and mechanical damage. Similar to the primer, the topcoat is also cured in an oven after application.
Spray Coating
Spray coating is sometimes used for special applications or when a more uniform and fine - grained coating is required. In spray coating, the paint is atomized into small droplets and sprayed onto the surface of the base material. This method allows for better control of the coating thickness and can cover complex shapes more effectively. However, it is generally more expensive and requires more precise control of the spraying environment.
4. Curing
Curing is a critical step in the manufacturing process. After the paint is applied, the coils pass through a curing oven. The curing oven is maintained at a specific temperature, which can range from 180°C to 260°C depending on the type of paint and the coating thickness.
During the curing process, the solvents in the paint evaporate, and the resin in the paint cross - links to form a hard, durable coating. The curing time also varies depending on the coating system, but it usually takes a few minutes. Proper curing is essential to ensure that the paint has good mechanical properties, such as hardness, flexibility, and adhesion.
5. Quality Control
Throughout the manufacturing process, strict quality control measures are implemented. At each stage, samples are taken and tested to ensure that the product meets the required standards.
For the base material, tests are conducted to check its chemical composition, mechanical properties, and surface quality. During the coating process, the thickness of the primer and topcoat is measured using non - destructive testing methods. The adhesion of the coating is also tested by methods such as cross - cut testing.
Color consistency is another important aspect of quality control. Spectrophotometers are used to measure the color of the coated coils and compare them with the standard color samples. This ensures that the color of the final product is consistent throughout the production batch.
6. Coil Rewinding and Packaging
After passing all the quality control tests, the color coated coils are rewound. The rewinding process ensures that the coils are neatly wound and have a proper tension. This is important for easy handling and transportation.

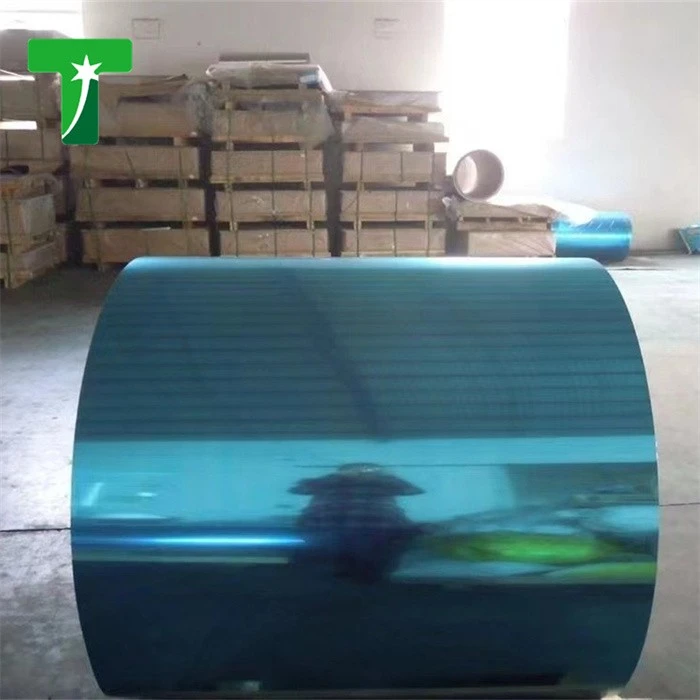

Finally, the coils are packaged. They are usually wrapped with a protective plastic film to prevent scratches and damage during transportation and storage. The packaged coils are then ready to be shipped to customers.
Our Product Range

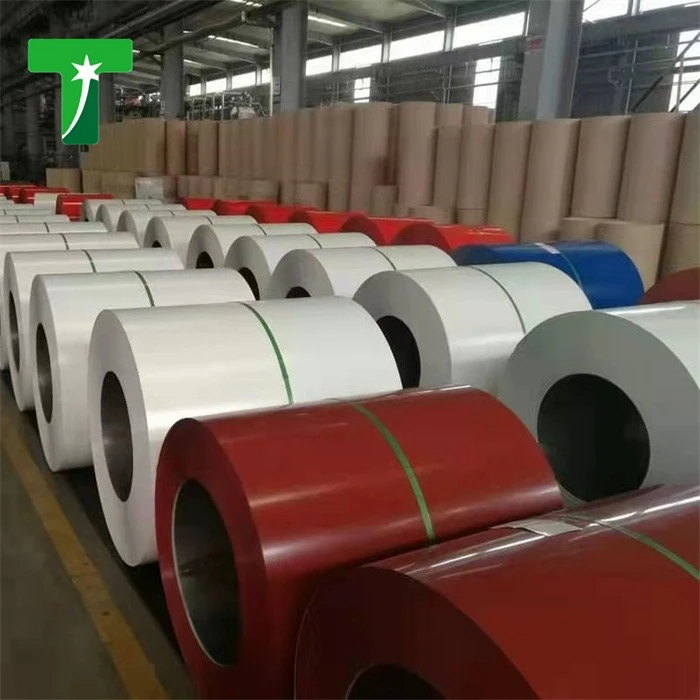

As a color coated coil supplier, we offer a wide range of products to meet different customer needs. You can explore our Color Coated Steel Coil Plate, which is suitable for various construction applications. Our CGCC Color Coated Coil is known for its high - quality coating and excellent corrosion resistance. And for roofing applications, our Color Coated Galvanized Steel Sheet Coil For Roofing Sheet is a popular choice.
